The UA10 with Intel® Large Display Module is a hassle-free thin client solution. The easy-to-deploy and maintain design provides various features while being easy to manage, reducing business costs. With a 23.8-inch FHD LCD bezel-free design, every feature can be viewed with enhanced depth for maximum concentration. UA10 also maintains seamless online interaction with 5M network cameras and dual microphones, making it easy to collaborate with colleagues at home or in the office.
- 介紹
- 規格
- 下載
Smart Performance, Smarter Savings
The UA10, powered by Intel® Celeron® Processor, combines energy efficiency with reliable performance, helping businesses maximize output while minimizing electricity expenses.
Work Smarter, Interact Better
Dual multi-display support, a 5M webcam, and dual microphones ensure efficient functionality and clear communication for healthcare, finance, and public sectors
See More, Achieve More

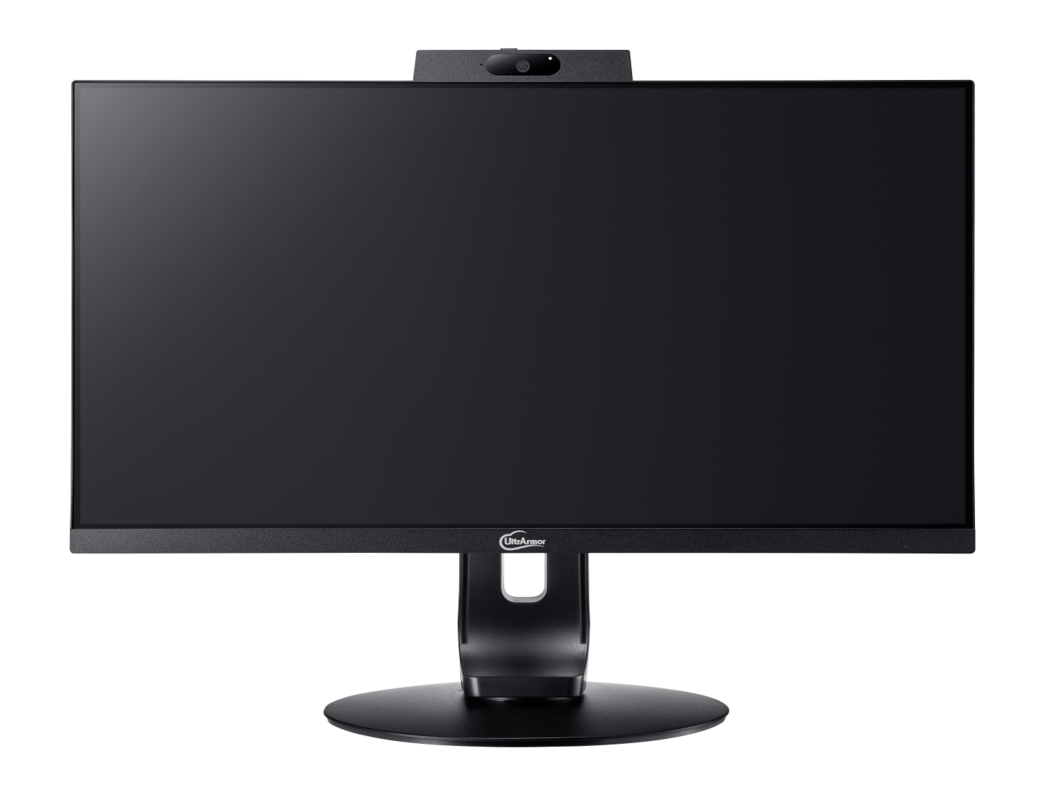

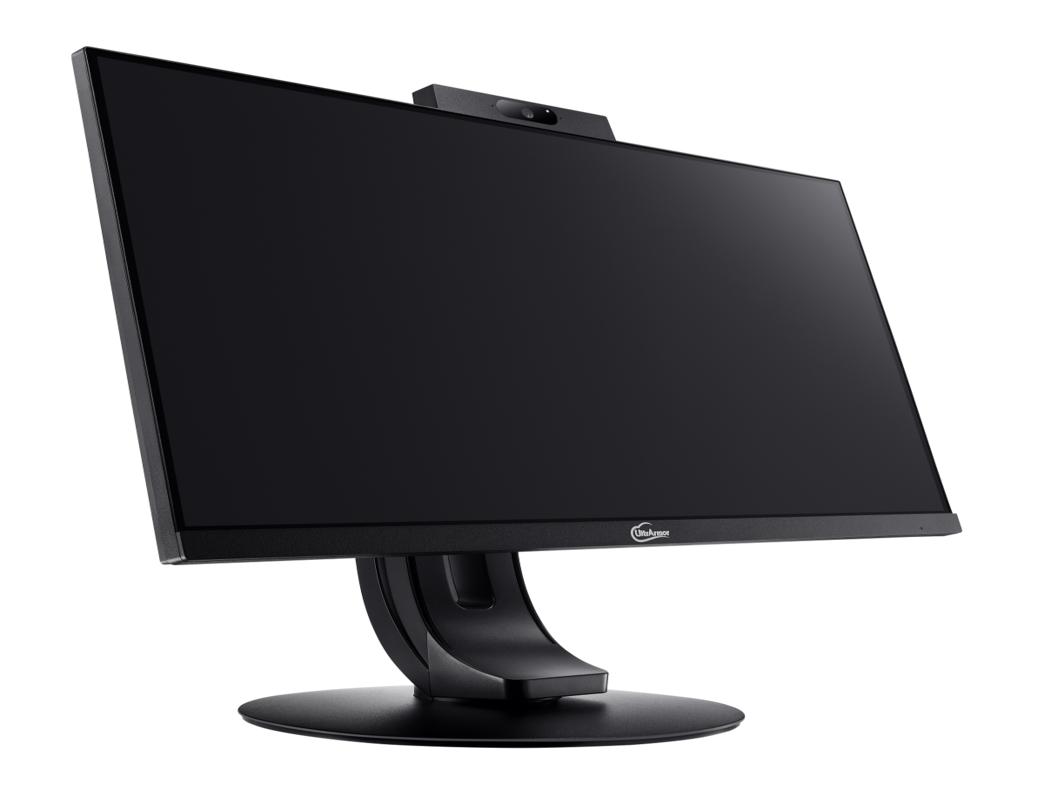

Featuring a 23.8" FHD LCD in a bezel-free, ultra-thin design, the UA10 minimizes distractions, letting you dive into work with clarity and focus
Adaptable Angles for Total Comfort

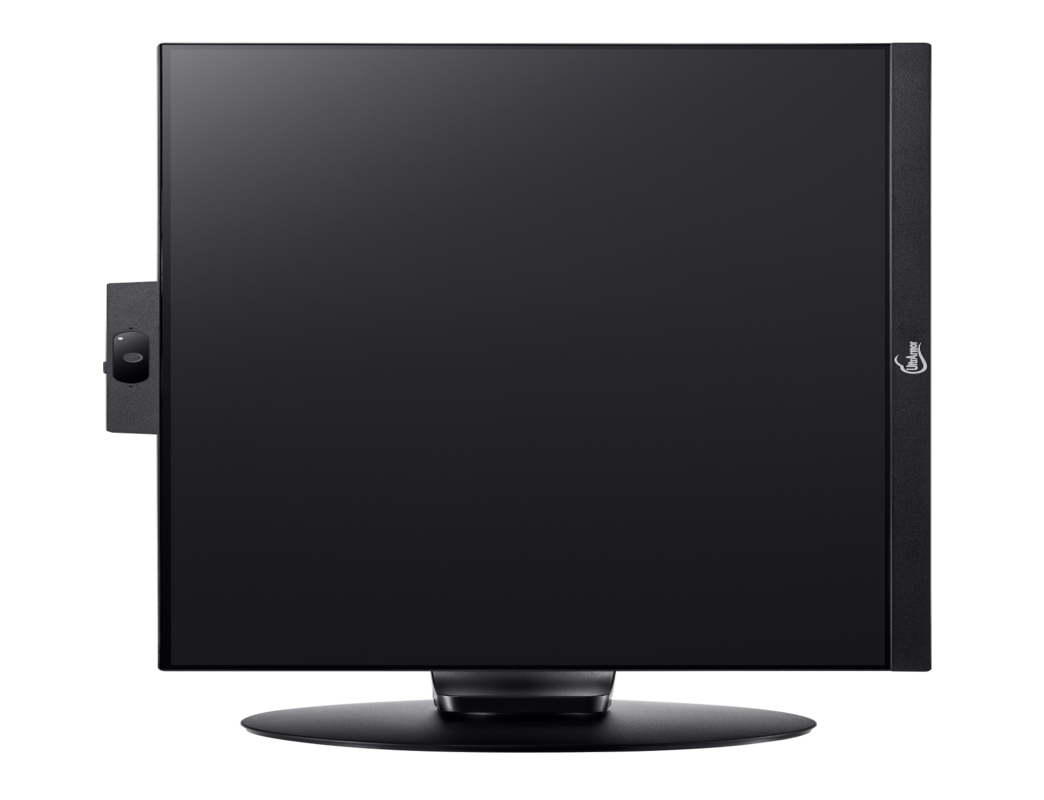

Work your way with UA10’s adjustable orientations, supporting up to 90-degree portrait and landscape modes to maximize comfort in any task
|
Performance |
|
|
CPU |
Intel® Jasper Lake N5100 processor supports up to 2.8GHz Burst frequency, Quad Core |
|
Memory |
4GB DDR4-2933MHz single channel |
|
Multiple Display |
23.8“ full HD LCD, 1 DP 1.4, 1 DVI-D |
|
Display Resolution |
Full HD on LCD, 4K 60Hz on connected displays (Max) |
|
Brightness (typical) |
250 cd/m² typ. |
|
Viewing Angle |
CR(>10):178/178 (V/H) typ. |
|
Graphic & Design |
• Intel® 11th UHD Graphics 24EUs • Full HD 5MP webcam with microphones • HEVC, VP9, and AVC decode support |
|
Expandability |
|
|
WiFi (Optional) |
• M.2 for WiFi module (E Key) • 2 external antenna holes reserved • Bluetooth 5.3 |
|
Storage |
• Onboard 8GB eMMC as default • mSATA slot for SSD installation |
|
LAN |
RJ-45 10/100/1000Mbps |
|
USB |
2 USB-A 2.0, 2 USB-A 3.2 Gen1 |
|
Audio and Sound |
Combo audio jack for headset & internal speakers |
|
Power |
DC 19V/ 3.42A 65W power adapter |
|
Mechanical Funtion |

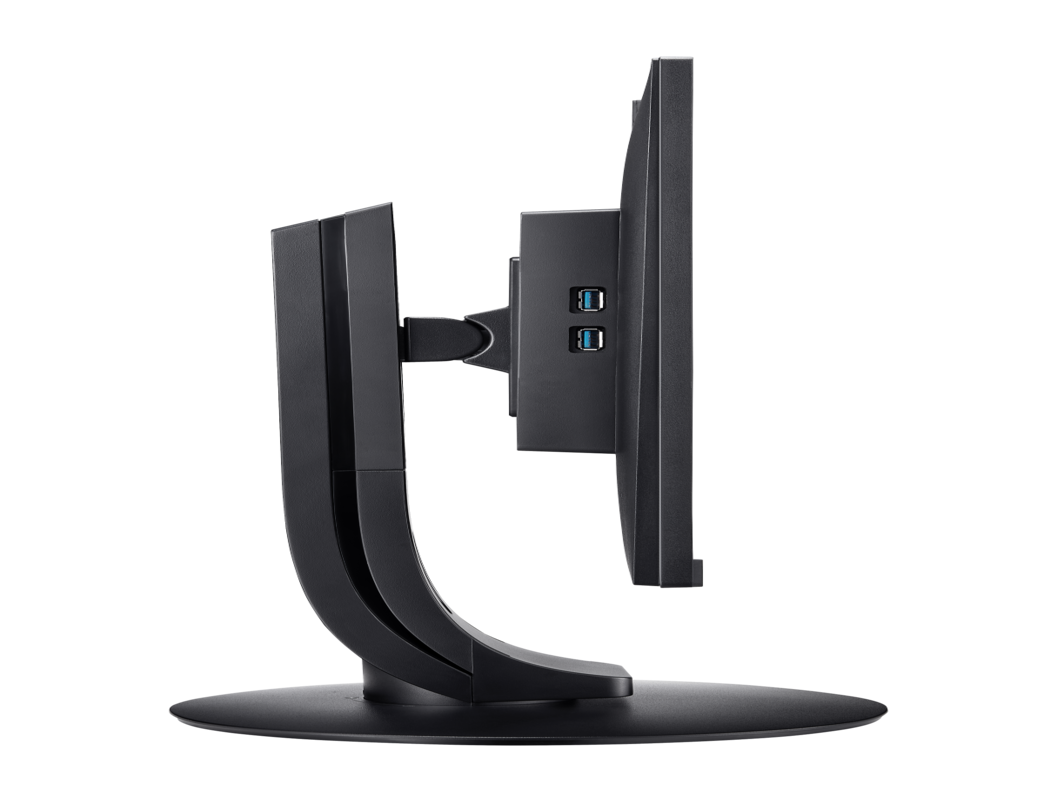

Tilt: -5°~23° Pivot (None): 90° Height Adjust (None): 110 mm Swivel (None): -65/65ﾟ |
|
Manageability / Security |
|
|
Security Lock |
Security lock 3*7mm |
|
WoL |
RJ45 LAN with standby power design supports Magic Packet wake-up event |
|
TPM |
fTPM 2.0 |
|
Environment |
|
|
Cooling |
Passive cooling |
|
Operating Temperature |
0 °C to 35 °C, 32 °F to 95 °F in vertical position |
|
Operating Humidity |
20% - 80% non-condensing |
-
2025 UltrArmor UA10 Datasheet
